High Current Conductor System

Time：2017-11-30 18:39:33 Hit：2608

Our KAIYUAN company is responsible for the design, manufacturing, installation, commissioning as well as the data measuring and service of the complete high current conductor system.。
Merits of structure：

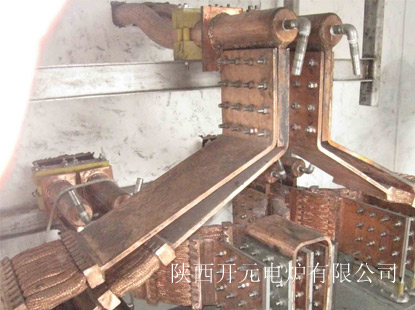

The flexible compensator(conductor) is installed between the secondary terminals of transformer and tubular copper tubes on TFR wall, this structure could reduce system vibration, heating and oil leakage and therefore the service life shall be lengthened and reliability raised。
The configuration of conductors is arranged in such way of“countered parallel connection
In same phase”，that is to say the flow direction of current in adjacent two conductor are
Contrary so as the E-M induction reduced。

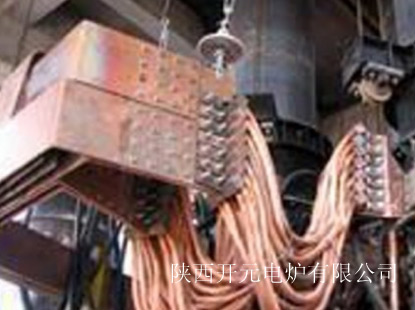

Water-cooled cables and conductive copper tubes are configurated in modified triangular
Displacement so to get lower asymmetrical coefficient of three phase reactance。
Reduced reactance and resistance, lower power loss could get higher active power to furnace.。
Customer raised order accompanied with following informations：
Transformer data on nameplate、overall dimension and size of secondary terminals as well
As the type and capacity of furnace。
