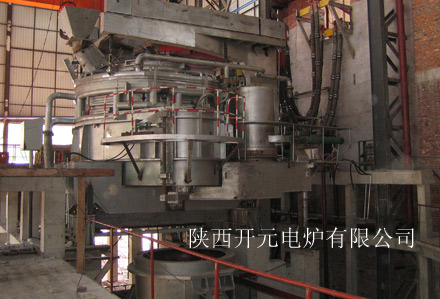

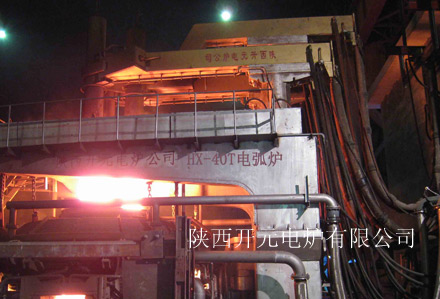

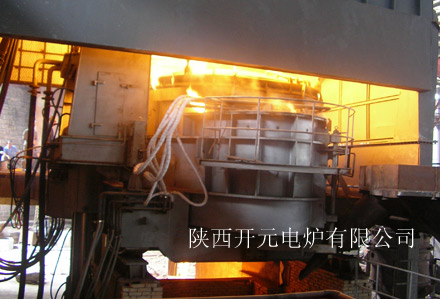

Electric Arc Furnace For Steelmaking



Electric Arc Furnace is a steelmaking equipment utilizing the thermal energy of arc generated
Between electrodes and scrap or metallic material, and is widely used for production of plain steel, top quality carbon steel, alloy steel, stainless steel in steelmaking works and steel-casting
plant。
Technical features
The following advanced technologies are to be applied to our KAIYUAN electric arc furnaces such as tubular water cooled wall panel, water cooled roof panel, eccentric bottom tapping,
Copper-clad conductive electrode arm, intellectual electrode regulator of energy saving, PLC industrial screen monitoring system, etc。
◆ Flexible control of temperature。
In the steelmaking process the temperature of liquid steel can be flexibly controlled by means of adjustment of current and voltage, so to meet the requirements for production of various grades of steel。
◆ Higher thermal efficiency
◆ Atmospheric pressure inside furnace is controllable
◆ More inclusions, such as phosphor, sulfur, oxygen and other hazard elements can be removed from liquid steel so as to improve the steel quality,stable and higher yields of alloy elements,the chemical composition of liquid steel can be precisely trimmed,much grades of steel can be produced。
◆ Simple structure of furnace, compact process route
Latest technologies utilized
Optimum selection for parameters of furnace
Tubular WCP and WCR
Eccentric bottom tapping(EBT)
Copper-clad conductive electrode arm
Large section flexible water cooled cable
Optimization configuration of high current conductor system)
Hydraulic system with proportional valves block
PLC basic level + process level industrial control system
Frequency change technology and network technology
Scope of work
Turnkey engineering with complete project design、
Equipment supply in complete or partial, revamping of existing equipment, services
Training and advice
Specifications of EAF:

Type

Inner dia. of furnace

shell,

Rated

tapping

capacity

Rated

Capacity

of TFR

Primary

Voltage

Of TFR

Secondary

Voltage of

transformer

Diameter

Of

electrode

PCD of

electrodes

Flow-rate

Of cooling

water

Total weight

Of mechanical

equipment



mm

ton

KVA

KV

V

mm

mm

M3 / hr

ton

HX-0.5

2100

0.5

650

6-10

200-98

150

450

30

5

HX-1.5

2500

1.5

1250

6-10

210-104

200

650

45

9

HX-3

3000

3

2200

6-10

220-110

250

750

50

24

HX-5

3400

5

3200

6-10

240-131

300

850

80

34

HX-10

3500

10

6300

10

260-139

350

950

130

74

HX-15

3800

15

8000

10

260-139

350

1000

180

85

HX-20

4200

20

10000-

12500

35

280-100

314-116

400

1050

240

98

HX-30

4300

30

12500-

18000

35

314-116

353-137

400

1050

405

178

HX-40

4600

40

18000-

25000

35

392-158

489-201

450

1150

455

205

HX-50

5200

50

25000-

31500

35

436-184

547-223

500

1300

504

224

HX-60

5500

60

40000-

50000

35

547-223

610-250

550

1350

900

252

HX-75

5800

75

50000-

63000

35

610-250

673-277

600

1450

1100

274

HX-100

6400

100

50000-

80000

35

673-277

760-310

600

1450

1200

294

HX-125

6800

125

63000-

100000

35

760-310

880-330

650

1500

1300

330
